Eee 900 Bluetooth mod

nzlamb1 Comment

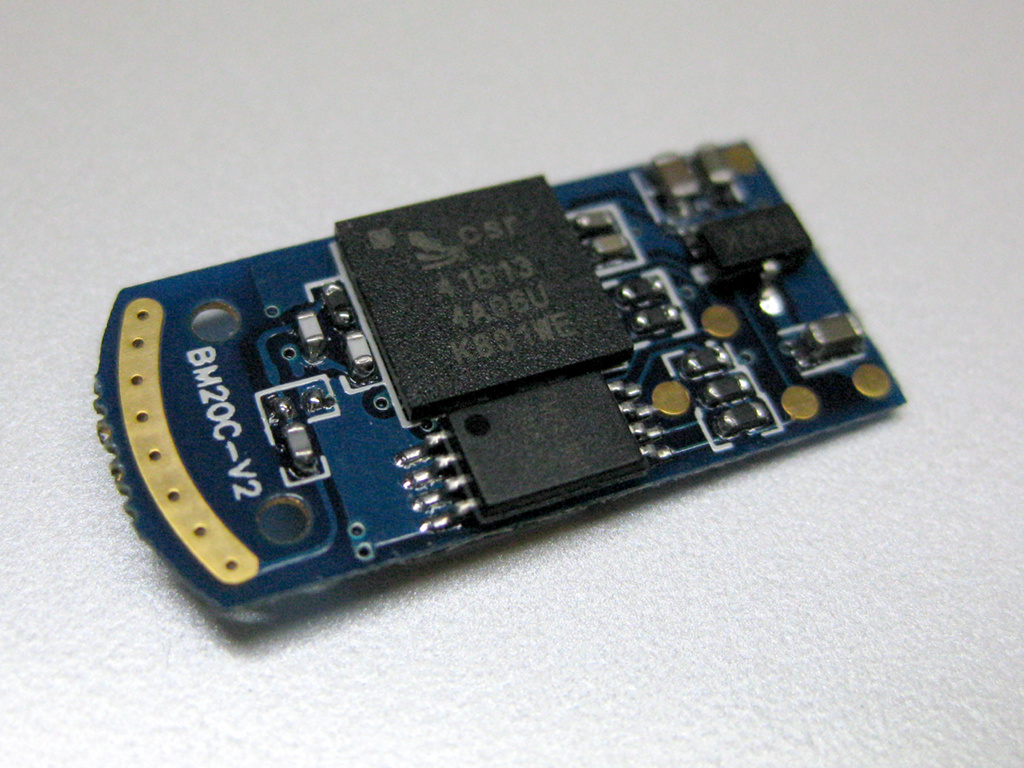

I finally decided it was time to kit out my ancient but trusty Asus Eee 900 with internal Bluetooth. I had an old micro Bluetooth adapter lying about which came apart very easily to reveal an exceptionally small PCB.

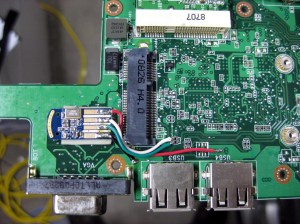

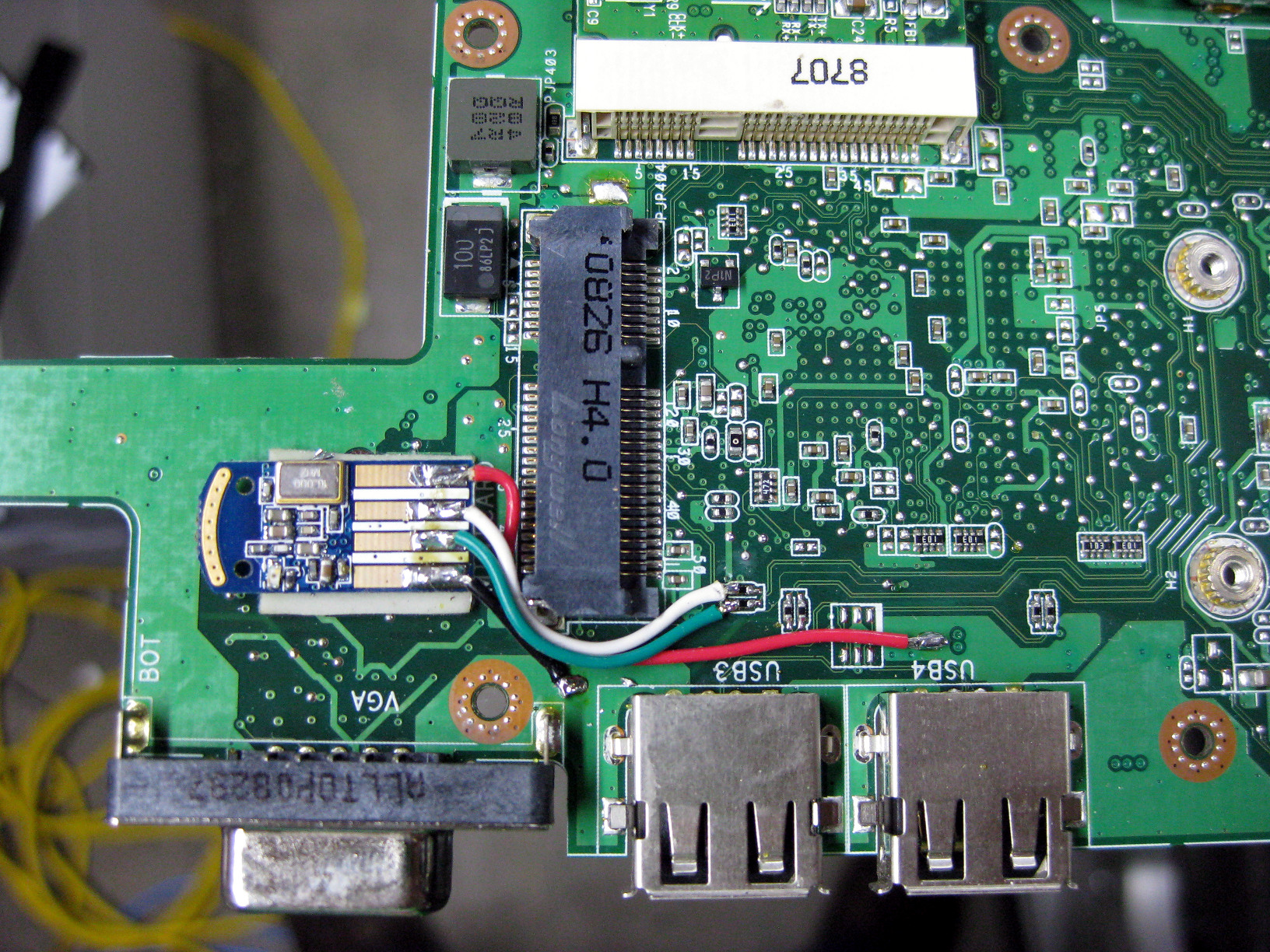

I stuck this to the motherboard of the Eee using a small piece of double sided foam tape, just behind the external VGA connector, and then wired it to the unused USB lines connected to the WiFi adapter PCIe slot.

Power was derived from the same 5v rail that supplies the external USB ports. I simply scraped some solder mask off the tracks and soldered the wires directly.

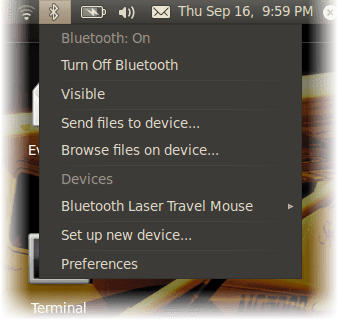

Fortunately once I put it all together again it worked!

Another reason I try to avoid Windows

nzlamb1 Comment

I decided to replace the hard disk in my Dell Optiplex 755 with a larger model (500GB). Migrating Ubuntu was trivial; Windows Vista was not. Clonezilla did its best but I ended up running into all sorts of Windows BCD corruption issues. Most of the various repair tools on the Windows DVD failed with incredibly non-descriptive error messages.

After giving up I quickly discovered that Windows would refuse to even install, citing Windows is unable to find a system volume that meets its criteria for installing. This was even after zeroising the first few GB of the disk with dd. WTF Microsoft?

Even a BIOS update didn’t do the trick. (hint to Dell, et al.: DOS is dead. Please give us a modern, OS independent BIOS update mechanism)

It turns out that two things seemed to have an affect on this: my HP Photosmart printer with its built-in card reader and floppy drive setting in the BIOS. Disconnecting the printer and setting the floppy drive mode from USB (default if there is no internal floppy drive) to None cured the problem.

By this stage I had wasted enough hours so didn’t even bother trying to see if the clone would work this time around.

Of course all along Ubuntu behaves just perfectly.

A guide to hacking Japanese car radios

nzlamb32 Comments

Do you have a Japanese import car that won’t tune to local FM radio stations? It’s a well known fact that Japan uses a different public FM broadcast band to the rest of the world; 76 to 90 MHz instead of the usual 87.5 to 108 MHz CCIR band. Sure you can use a band expander but these suffer from a number of drawbacks, not to mention that the radio does not display the correct frequency of the station you are tuned to.

Here’s a guide on hacking your radio to convert it to natively tune across the CCIR band. This post is still a work in progress so I may update it from time to time and add more photos as I get the chance. Continue reading →

McIntosh PF-2520I-A

nzlamb72 Comments

I recently acquired this lovely McIntosh PF-2510I-A 6-disc in-dash CD changer. This model was available as an option in the North American market Subaru Legacy and Outback. It is often but incorrectly referred to as the PF-25201 or PF-25201-A.



McIntosh PF-2520I-A. Yes those are solid aluminium knobs!



Fortunately it shares the same connectors and pinout as the Japanese and Austrailasian market Legacys so can be fitted in cars destined for other markets with very little effort. Having said that there are a couple of gotchas. Read on… Continue reading →

Japanese import FM tuner conversion

nzlamb80 Comments

This post describes how to modify a McIntosh PF-2142I (often but incorrectly referred to as PF-21421) JDM car radio to natively tune from 87.5-108MHz as used in most countries around the world. This model of radio is fitted as standard equipment in many JDM Subaru Legacy and Outback cars manufactured between 1998 and 2003. Continue reading →
