Alpine CDA-9826 repair

My brother-in-law has an Alpine CDA-9826 head unit that suddenly died. Apparently the sound went crackly and slowly faded out to nothing. Other than no sound the unit appeared to work perfectly.

Seeing I sold it to him about a year ago I felt inclined to get it working again! It’s a very nice little stereo.

Alpine CDA9826 opened up

Opening it up was rather uneventful. I hooked up an iPod to the auxiliary input and traced the audio as far as IC201, a TDA7404D made by ST Microelectronics. This IC switches between the various input sources and also applies volume and tone settings. The datasheet is available here.

I confirmed 8.6V being supplied to pin26, hooking up an oscilloscope to pins 24 and 25 confirmed data from the micro when turning the volume and shorting the aux input to the output of the IC resulted in sound from the speakers. The IC also had some discolouration as if it had overheated.

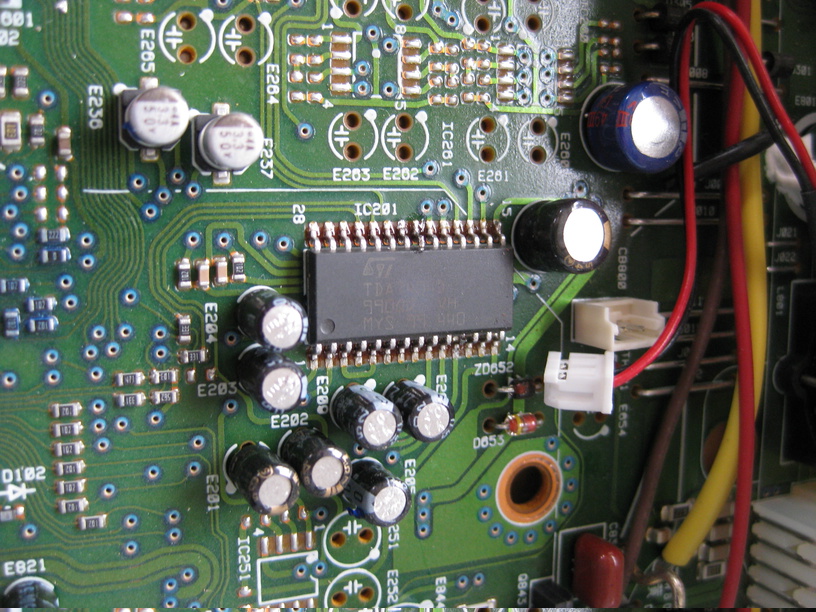

Dead IC201

Getting a replacement was the hard part. No supplier I could find in NZ could obtain one or was willing to sell a quantity smaller than 400. In the end I stumbled across a Polish company called Impel Electronics that claimed to stock the IC. I duly ordered one for €3.50 (total NZ$27 including postage) and within a week it arrived.

Replacing the IC restored the stereo to full working order. I would highly recommend Impel to anyone looking for obscure audio parts!

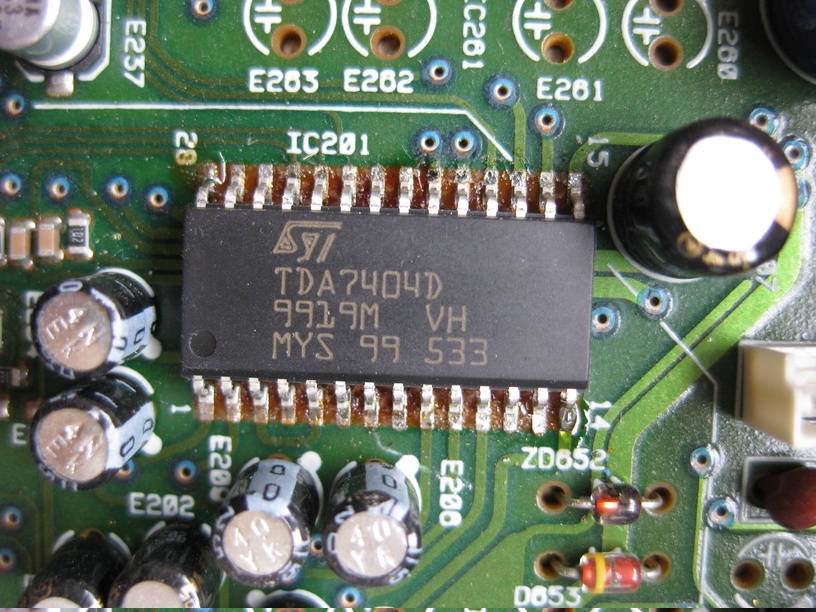

New TDA7404D in place

2 Responses to Alpine CDA-9826 repair

  1. Ivan Nugraha says:

    Hi, i had the same problem with same unit model, try to check with volt meter but there is no power went in into the 26 pin, try to shorting between the input and output pin and there is sound comes out, do you think the IC201 is the fault? i didnt see any discoloration or burned smell on the ic, the unit just dont produce any sound but it looks like working fine with all the lights as normal, thanks for your help

    • nzlamb says:

      I’d work on tracing the 8.6v rail first as it powers several other stages of the unit including the tuner. The microprocessor and display usually run off a separate 5v supply so this could be why the unit still appears to function.
